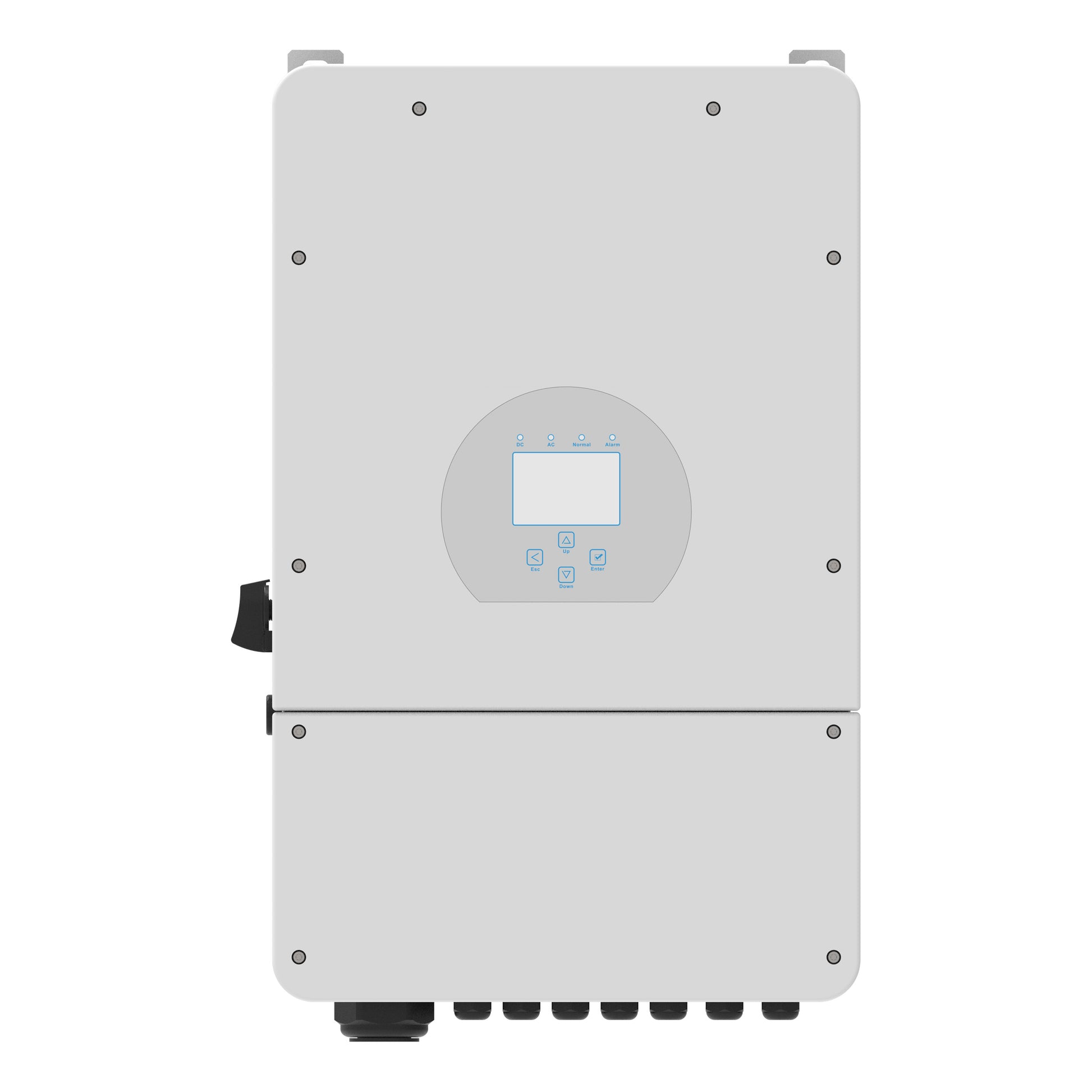

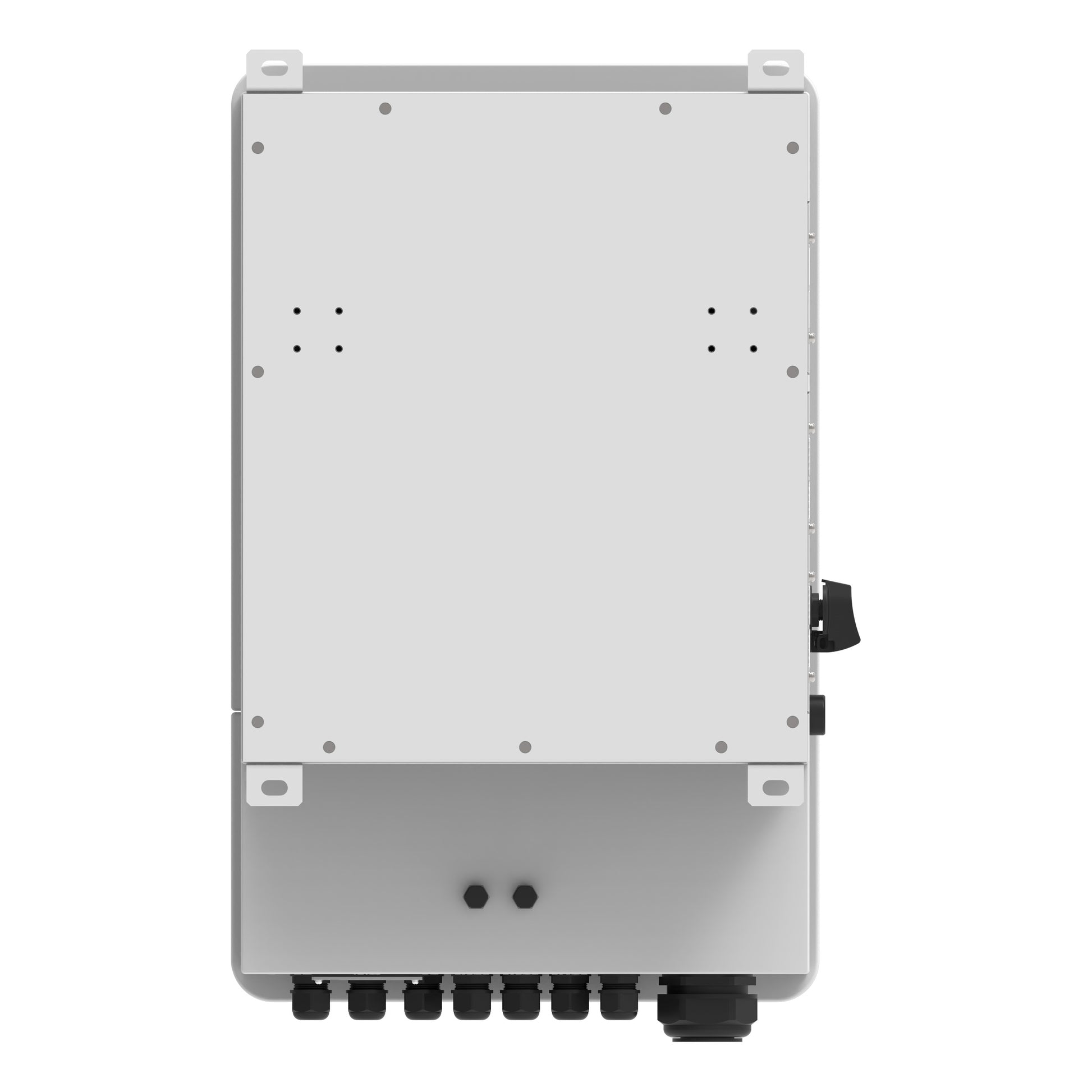

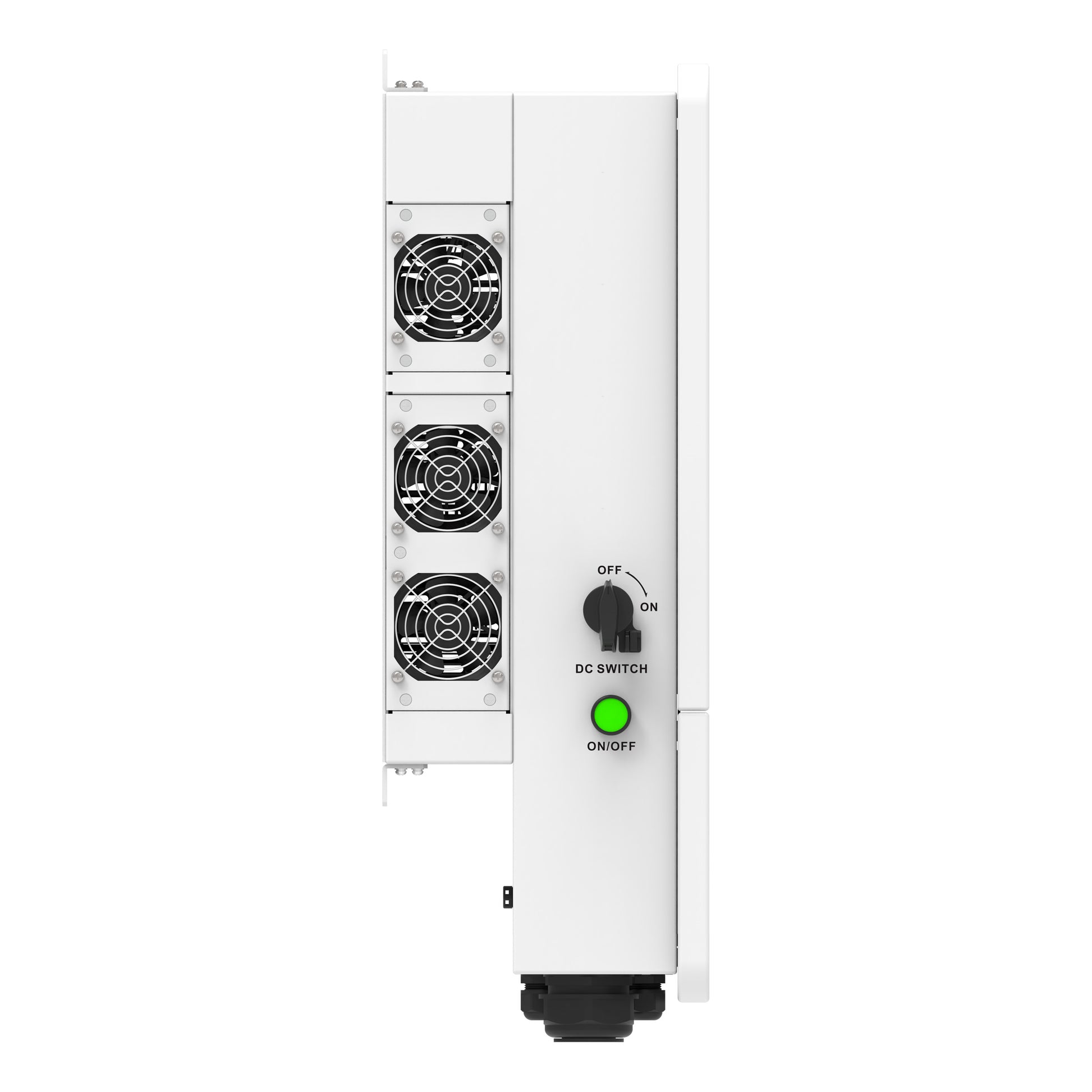

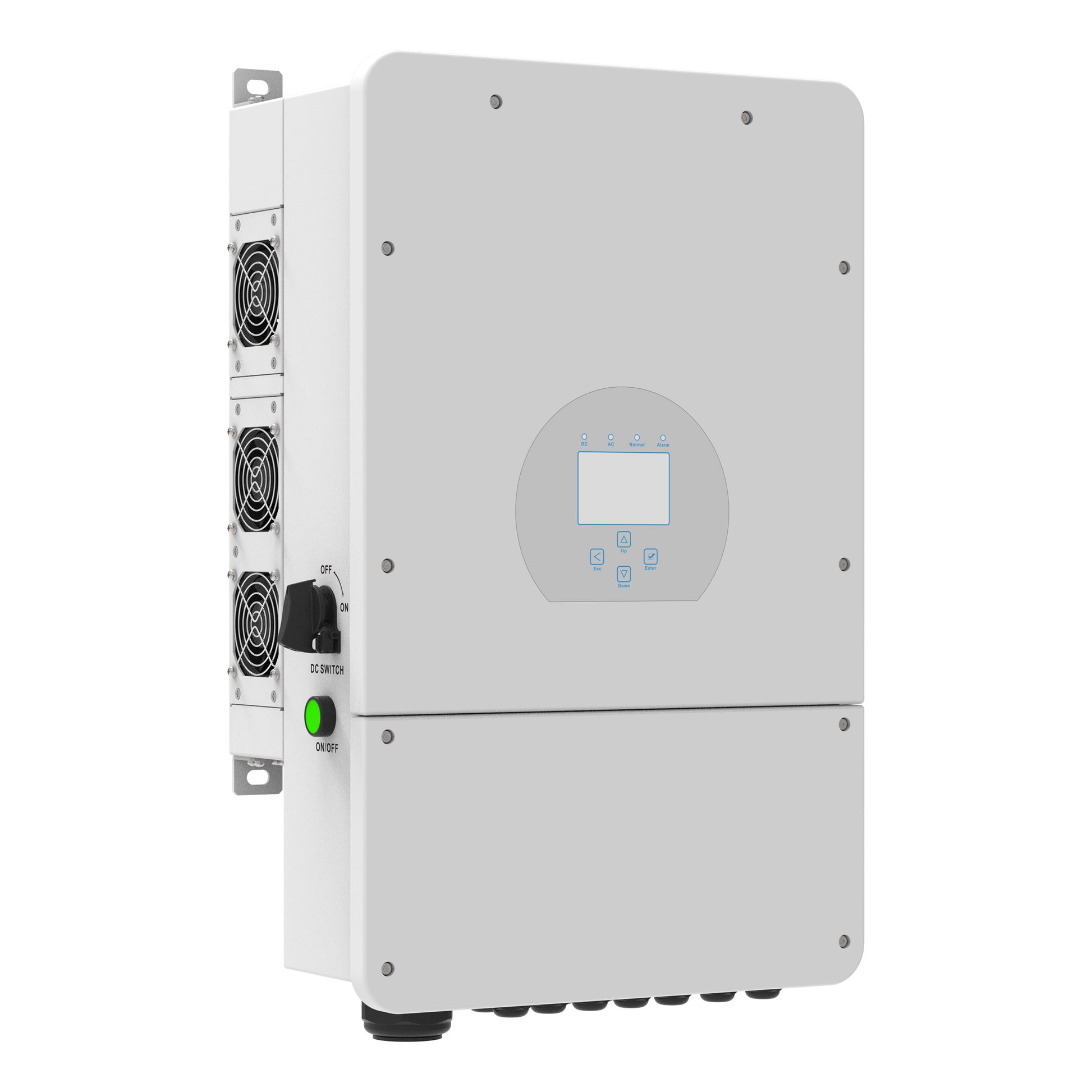

Deye LV Hybrid 10kW Single Phase Inverter
Deye LV Hybrid 10kW Single Phase Inverter
SUN-10K-SG02LP1-AU-AM3
SUN-10K-SG02LP1-AU-AM3

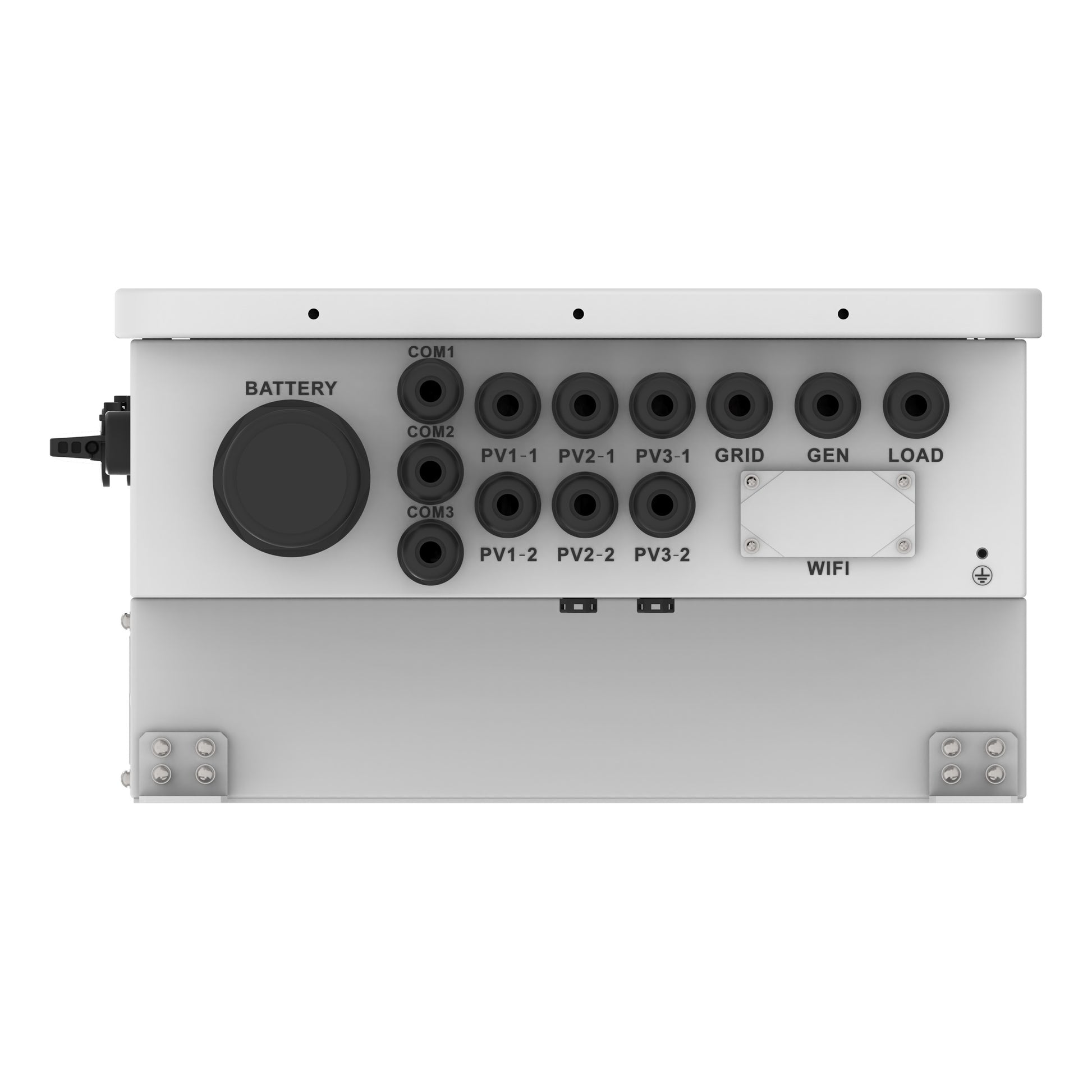

Deye's SUN-10K-SG02LP1-AU-AM3 is a 10kW single phase hybrid Inverter, working with a range of Low Voltage batteries, including the extensive line of Deye batteries on offer. The 10kW model also features 3 MPP Trackers, with 2 strings per MPPT, for a total of 6 strings for great system design flexibility.
Deye's wide range of hybrid inverters work for DC & AC-coupled installations, as well as true support for full off-grid systems, with direct generator input to the inverter. The inverters also feature smart load output support, independent back-up load port, easy time-of-use set-up via their innovative app, and easy set-up and remote monitoring for installers.
The full range from Deye is on the way to AI Energy Shop now, contact us directly for details of availability and pricing and to pre-order now.
Submit Product Enquiry
Submit Product Enquiry
More In The Deye Hybrid Inverter Range
-
Deye LV Hybrid 12kW Three Phase Inverter
SUN-12K-SG04LP3-AURegular price $0.00Regular priceUnit price per -
Deye LV Hybrid 10kW Three Phase Inverter
SUN-10K-SG04LP3-AURegular price $0.00Regular priceUnit price per -
Deye LV Hybrid 8kW Single Phase Inverter
SUN-8K-SG05LP1-AURegular price $0.00Regular priceUnit price per -
Deye LV Hybrid 6kW Single Phase Inverter
SUN-6K-SG04LP1-AURegular price $0.00Regular priceUnit price per -
Deye LV Hybrid 5kW Single Phase Inverter
SUN-5K-SG04LP1-AURegular price $0.00Regular priceUnit price per
Product Specifications
| Brand | Deye |
| Product Series | SG-LP1 |
| Product Model | SUN-10K-SG02LP1-AU-AM3 |
| Inverter Type | Hybrid |
| Power Rating | 10.0kW |
| Phase Support | Single Phase |
| Battery Voltage Support | Low Voltage |
| Grid Support | On-Grid and Off-Grid |
| No. of MPPTs | 3 |
| No. of Strings | 2 Per MPPT (6 Total) |
| IP Rating | IP65 |
| Weight | 35.6 kg |
| Dimensions (W×H×D) | 420 mm × 670 mm × 233 mm |
