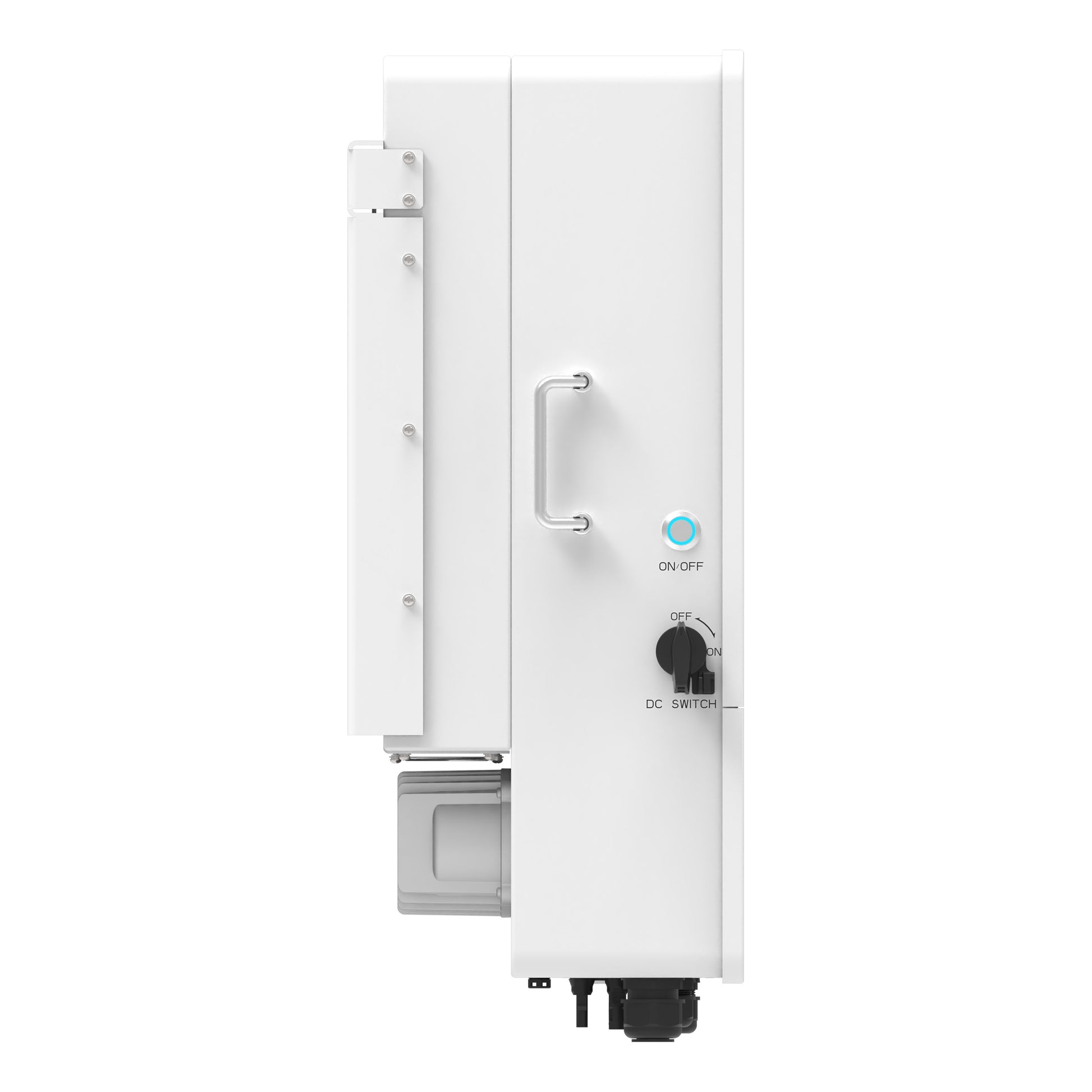

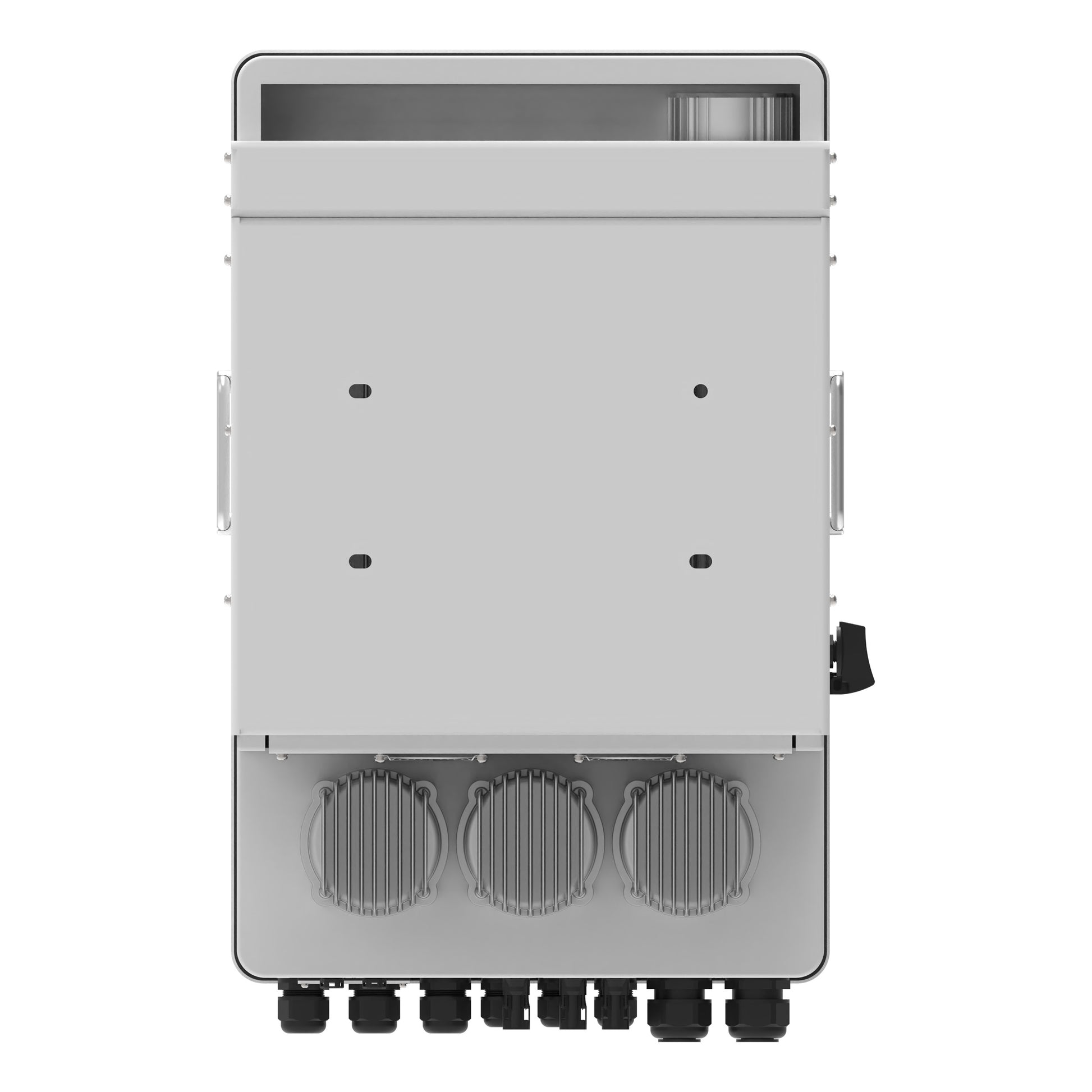

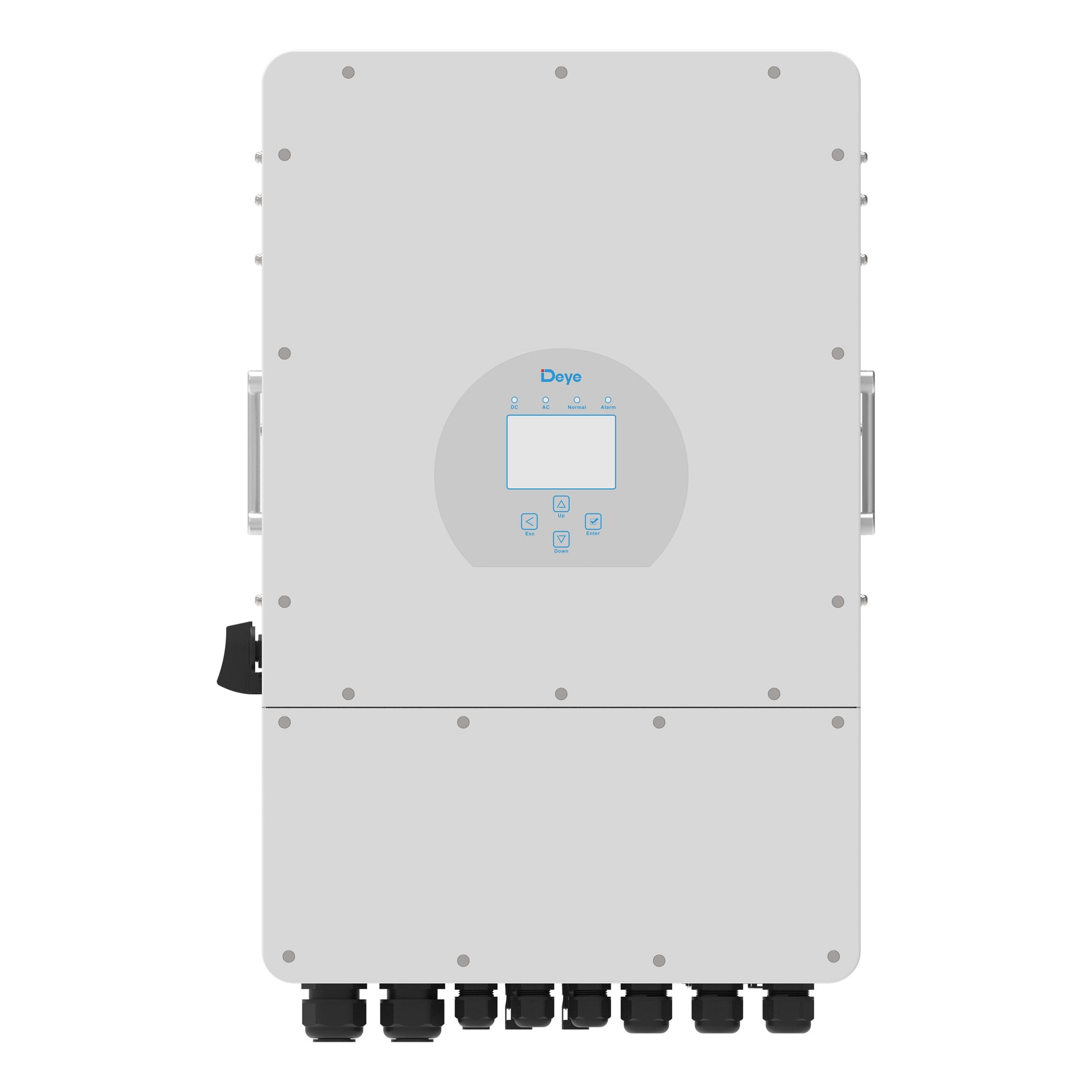

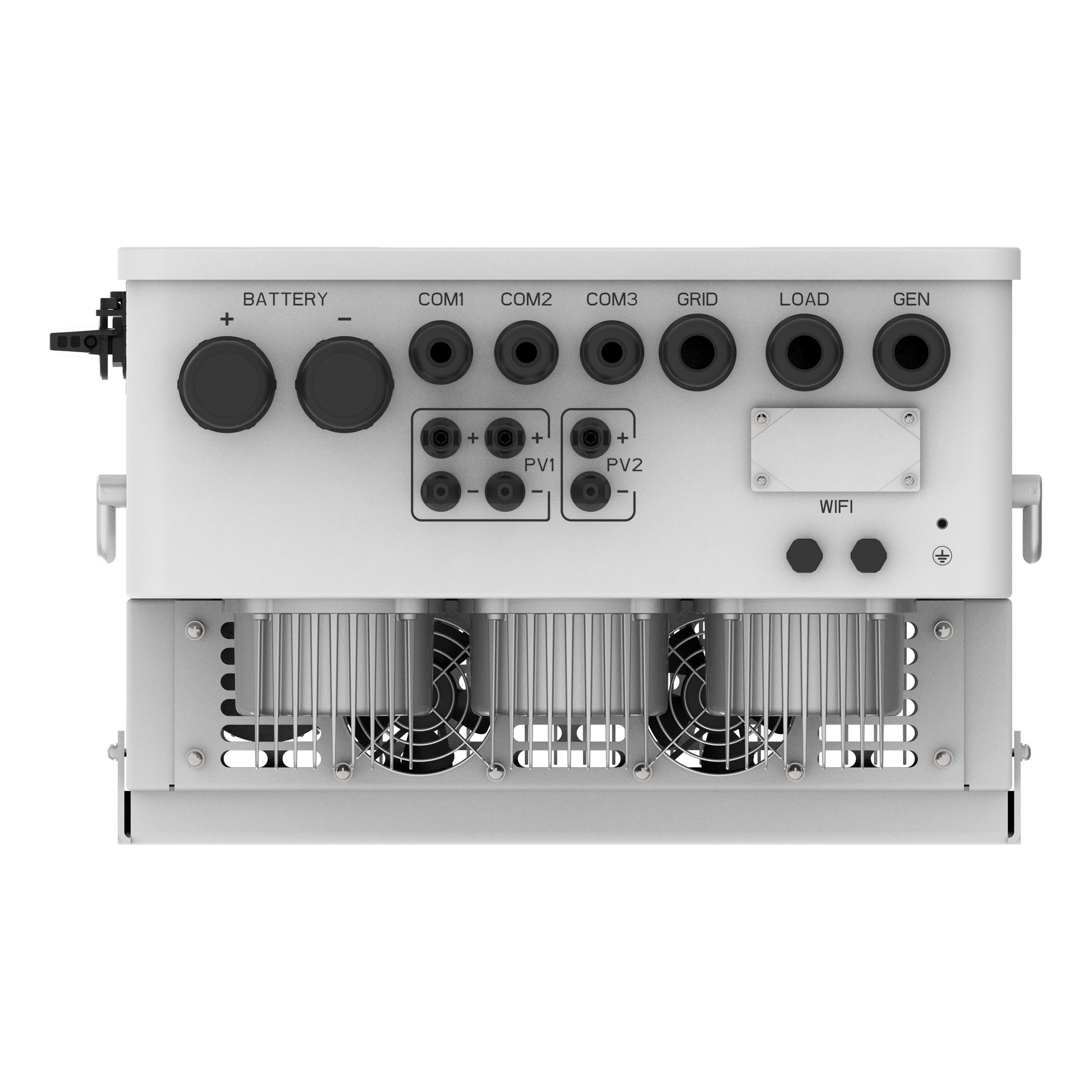

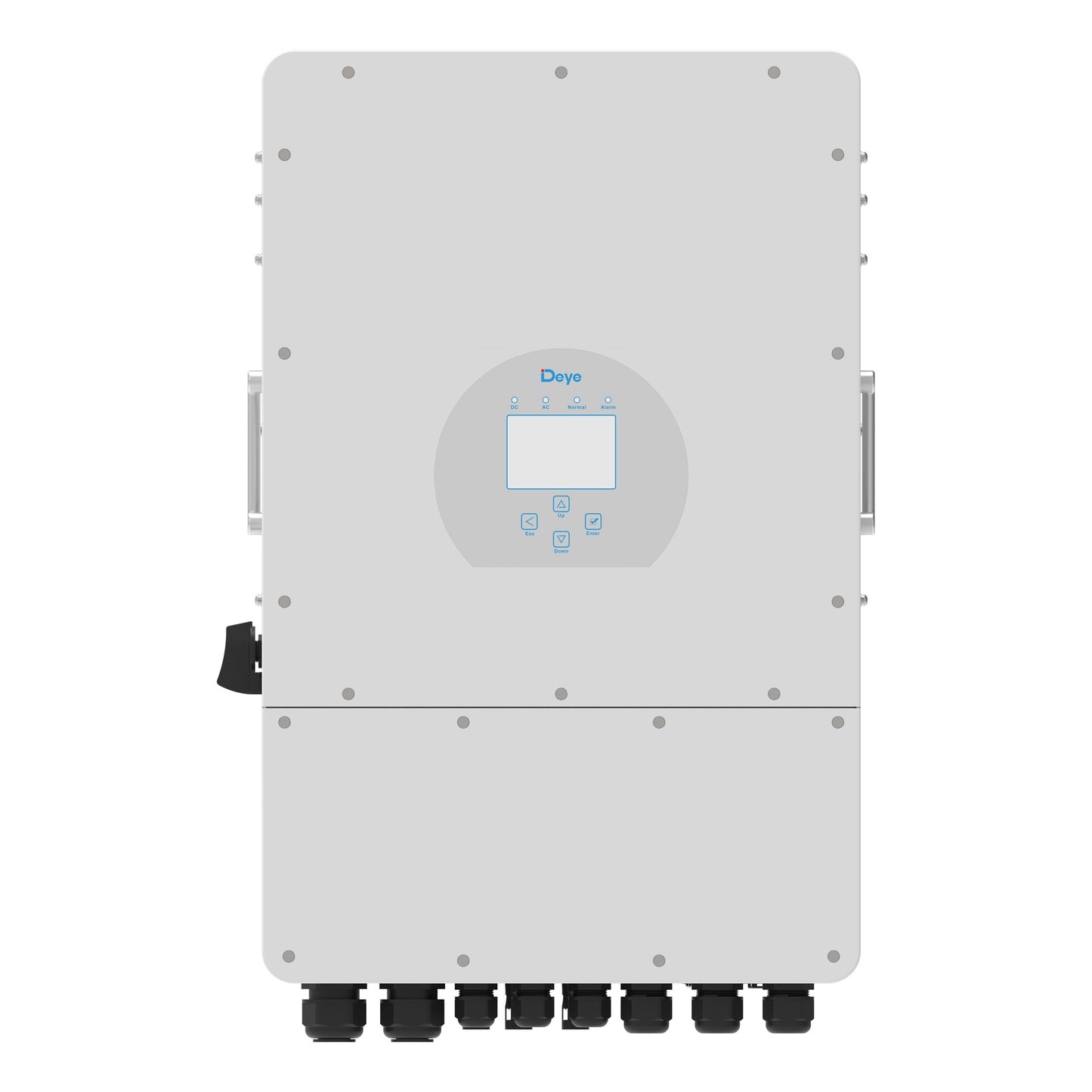

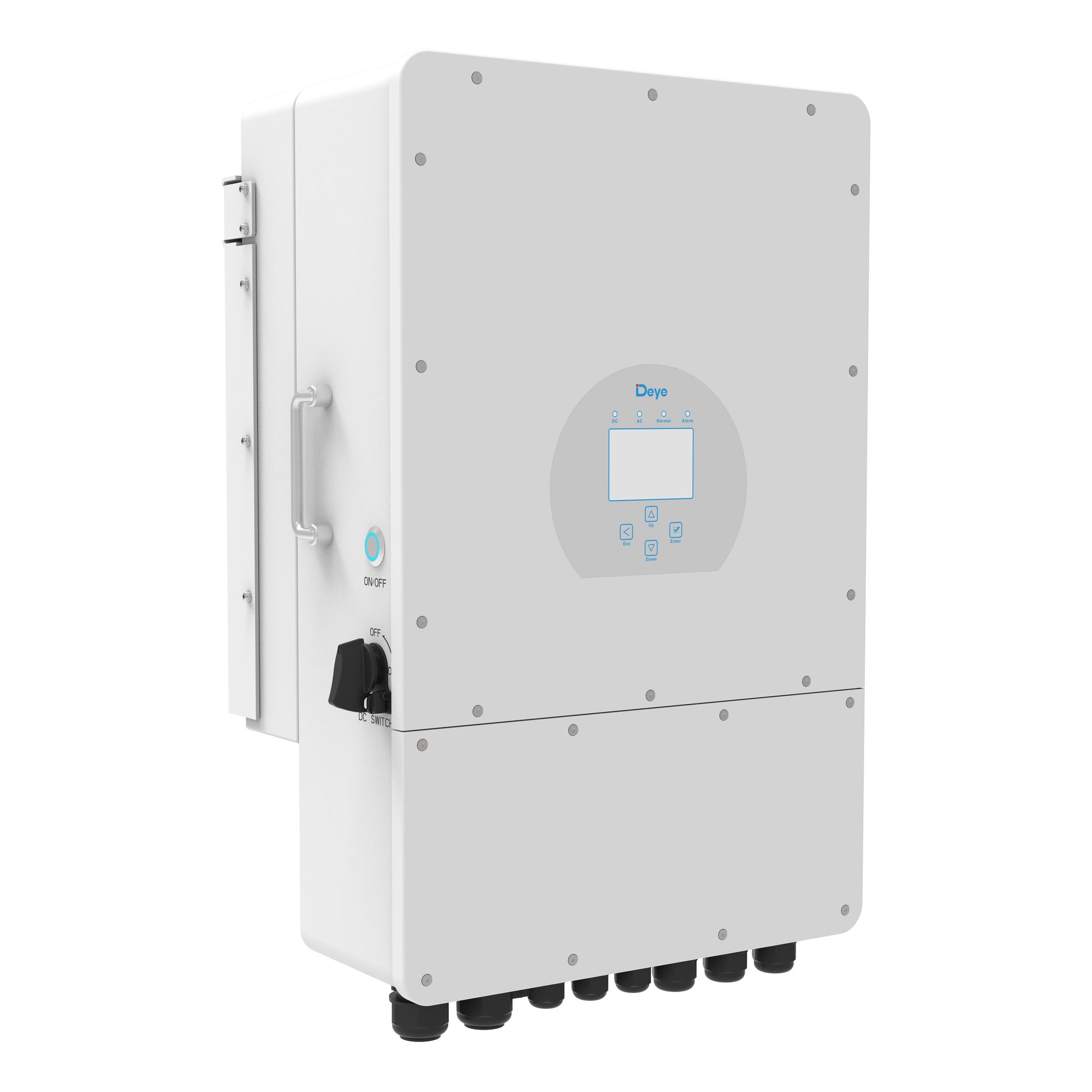

Deye LV Hybrid 10kW Three Phase Inverter

Deye LV Hybrid 10kW Three Phase Inverter

SUN-10K-SG04LP3-AU

SUN-10K-SG04LP3-AU

Deye's SUN-10K-SG04LP3-AU is a 10kW three phase hybrid Inverter, working with a range of Low Voltage batteries, including the extensive line of Deye batteries on offer. With support for 100% unbalanced output for each phase, and a 240A max charge and discharge, Deye's three phase hybrid inverters offer great flexibility for a range of on-grid and off-grid requirements.

Deye's wide range of hybrid inverters work for DC & AC-coupled installations, as well as true support for full off-grid systems, with direct generator input to the inverter. The inverters also feature smart load output support, independent back-up load port, easy time-of-use set-up via their innovative app, and easy set-up and remote monitoring for installers.

The full range from Deye is on the way to AI Energy Shop now, contact us directly for details of availability and pricing and to pre-order now.

Submit Product Enquiry

View full details

Product Specifications

Brand Deye
Product Series SG-LP3
Product Model SUN-10K-SG04LP3-AU
Inverter Type Hybrid
Power Rating 10.0kW
Phase Support Three Phase
Battery Voltage Support Low Voltage
Grid Support On-Grid and Off-Grid
No. of MPPTs 2
No. of Strings 2/1 Per MPPT (3 Total)
IP Rating IP65
Weight 38 kg
Dimensions (W×H×D) 422 mm × 658 mm × 254 mm
